Notes on Latex Math Symbols

ng">

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
        \alpha              \theta              o                   \upsilon
        \beta               \vartheta           \pi                 \phi
        \gamma              \iota               \varpi              \varphi
        \delta              \kappa              \rho                \chi
        \epsilon            \lambda             \varrho             \psi
        \varepsilon         \mu
The following tables are extracted from *The Not So Short Introduction to LaTeX2e*, aka. *LaTeX2e in 90 minutes*, by Tobias Oetiker, Hubert Partl, Irene Hyna, and Elisabeth Schlegl. It can be located [here](https://github.com/CTeX-org/lshort-zh-cn).

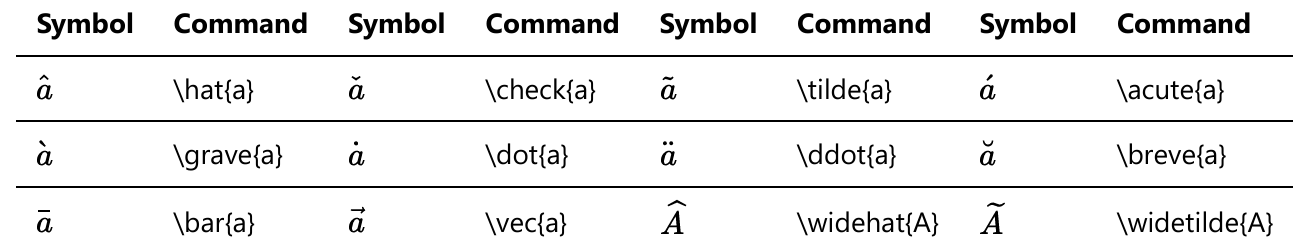

## Table: Math Mode Accents
<!--
| Symbol | Command | Symbol | Command | Symbol | Command | Symbol | Command |
| --- | --- | --- | --- | --- | --- | --- | --- |
| $\hat{a}$ | \hat{a} | $\check{a}$ | \check{a} | $\tilde{a}$ | \tilde{a} | $\acute{a}$ | \acute{a} |
| $\grave{a}$ | \grave{a} | $\dot{a}$ | \dot{a} | $\ddot{a}$ | \ddot{a} | $\breve{a}$ | \breve{a} |
| $\bar{a}$ | \bar{a} | $\vec{a}$ | \vec{a} | $\widehat{A}$ | \widehat{A} | $\widetilde{A}$ | \widetilde{A} | -->

<img src="/post_img/2025-02-25/table1.png">

```latex
        \hat{}              \check{}            \tilde{}            \acute{}
        \grave{}            \dot{}              \ddot{}             \breve{}
        \bar{}              \vec{}              \widehat{}          \widetilde{}

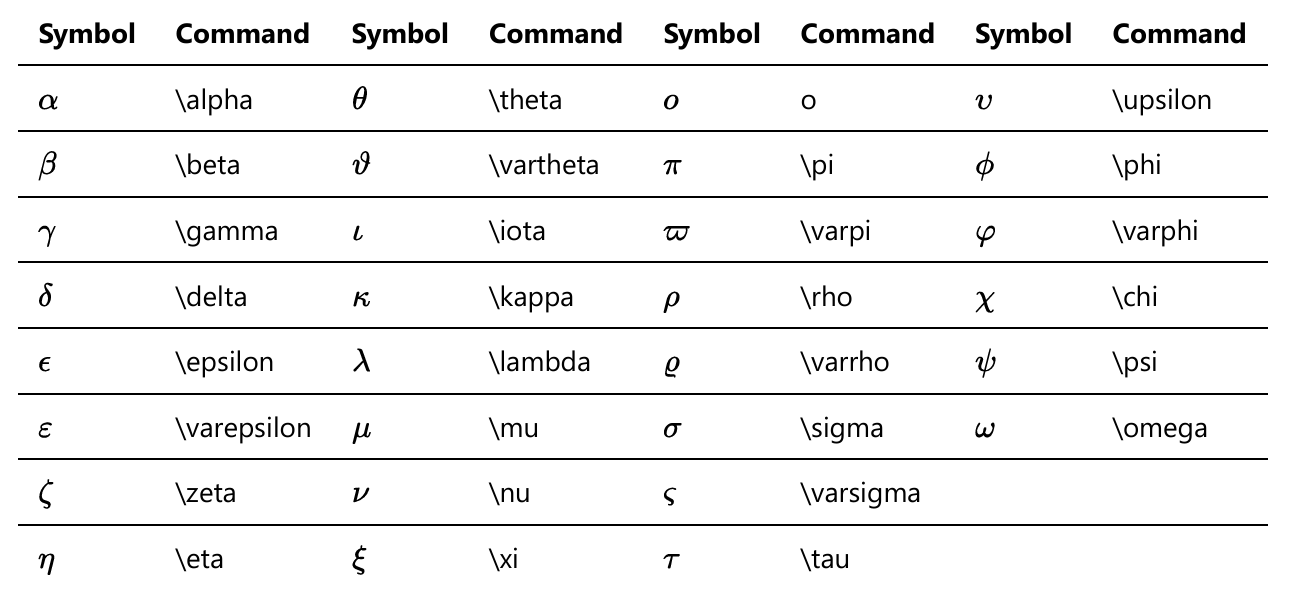

Table: Lowercase Greek Letters

<img src="/post_img/2025-02-25/table2.p \sigma \omega \zeta \nu \varsigma \eta \xi \tau

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

---

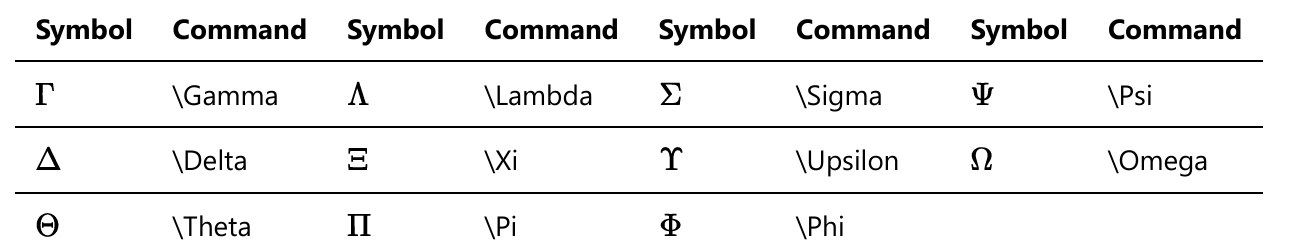

## Table: Uppercase Greek Letters

<!-- | Symbol | Command | Symbol | Command | Symbol | Command | Symbol | Command |
| --- | --- | --- | --- | --- | --- | --- | --- |
| $\Gamma$ | \Gamma | $\Lambda$ | \Lambda | $\Sigma$ | \Sigma | $\Psi$ | \Psi |
| $\Delta$ | \Delta | $\Xi$ | \Xi | $\Upsilon$ | \Upsilon | $\Omega$ | \Omega |
| $\Theta$ | \Theta | $\Pi$ | \Pi | $\Phi$ | \Phi | -->

<img src="/post_img/2025-02-25/table3.png">

```latex
        \Gamma              \Lambda              \Sigma              \Psi
        \Delta              \Xi                  \Upsilon            \Omega
        \Theta              \Pi                  \Phi

Table: Binary Relations

You can produce corresponding negations by adding a \not command as prefix to the following symbols.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
          <                          >                         =
          \leq or \le                \geq or \ge               \equiv
          \ll                        \gg                       \doteq
          \prec                      \succ                     \sim
          \preceq                    \succeq                   \simeq
          \subset                    \supset                   \approx
          \subseteq                  \supseteq                 \cong
          \sqsubset                  \sqsupset                 \Join
          \sqsubseteq                \sqsupseteq               \bowtie
          \in                        \ni or \owns              \propto
          \vdash                     \dashv                    \models
          \mid                       \parallel                 \perp
          \smile                     \frown                    \asymp
          :                          \notin                    \neq or \ne

$^a$ Use the latexsym package to access this symbol


Table: Binary Operators

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
         +                         -
         \pm                       \mp                          \triangleleft
         \cdot                     \div                         \triangleright
         \times                    \setminus                    \star
         \cup                      \cap                         \ast
         \sqcup                    \sqcap                       \circ
         \vee or \lor              \wedge or \land              \bullet
         \oplus                    \ominus                      \diamond
         \odot                     \oslash                      \uplus
         \otimes                   \bigcirc                     \amalg
         \bigtriangleup            \bigtriangledown             \dagger
         \lhd                      \rhd                         \ddagger
         \unlhd                    \unrhd                       \wr

$^a$ Use the latexsym package to access this symbol


Table: BIG Operators

1
2
3
4
        \sum                 \bigcup             \bigvee             \bigoplus
        \prod                \bigcap             \bigwedge           \bigotimes
        \coprod              \bigsqcup                               \bigodot
        \int                 \oint                                   \biguplus

Table: Arrows

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
       \leftarrow or \gets         \longleftarrow              \uparrow
       \rightarrow or \to          \longleftrightarrow         \downarrow
       \leftrightarrow             \longleftrightarrow         \updownarrow
       \Leftarrow                  \Longleftarrow              \Uparrow
       \Rightarrow                 \Longrightarrow             \Downarrow
       \Leftrightarrow             \Longleftrightarrow         \Updownarrow
       \mapsto                     \longmapsto                 \nearrow
       \hookleftarrow              \hookrightarrow             \searrow
       \leftharpoonup              \rightharpoonup             \swarrow
       \leftharpoondown            \rightharpoondown           \nwarrow
       \rightleftharpoons          \iff                        \Leadsto

$^a$ Use the latexsym package to access this symbol


Table: Delimiters

1
2
3
4
5
6
       \lparen            \rparen            \uparrow              \Uparrow
       [ or \lbrack       ] or \rbrack       \downarrow            \Downarrow
       \{ or \lbrace      \} or \rbrace      \updownarrow          \Updownarrow
       \langle            \rangle            | or \vert            \| or \Vert
       \lfloor            \rfloor            \lceil                \rceil
       /                  \backslash

Table: Miscellaneous Symbols

1
2
3
4
5
6
7
8
        \dots                \cdots             \vdots             \ddots
        \hbar                \imath             \jmath             \ell
        \Re                  \Im                \aleph             \wp
        \forall              \exists            \mho               \partial
        \nabla               \triangle          \Box               \Diamond
        \bot                 \top               \angle             \surd
        \diamondsuit         \heartsuit         \clubsuit          \spadesuit
        \neg or \lnot        \flat              \natural           \sharp

$^a$ Use the latexsym package to access this symbol


Table: Non-Mathematical Symbols

These symbols can also be used in text mode.

1
2
            \dagger                    \S                        \copyright
            \ddag                      \P                        \pounds

Table: AMS Delimiters

1
        \ulcorner            \urcorner           \llcorner            \lrcorner

Table: AMS Binary Relations

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
         \lessdot                 \gtrdot                  \doteqdot or \Doteq
         \leqslant                \geqslant                \risingdotseq
         \eqslantless             \eqslantgtr              \fallingdotseq
         \leqq                    \geqq                    \eqcirc
         \lll or \llless          \ggg or \gggtr           \circeq
         \lesssim                 \gtrsim                  \triangleq
         \lessapprox              \gtrapprox               \bumpeq
         \lessgtr                 \gtrless                 \Bumpeq
         \lesseqgtr               \gtreqless               \thicksim
         \lesseqqgtr              \gtreqqless              \thickapprox
         \preccurlyeq             \succcurlyeq             \approxeq
         \curlyeqprec             \curlyeqsucc             \backsim
         \precsim                 \succsim                 \backsimeq
         \precapprox              \succapprox              \vDash
         \subseteqq               \supseteqq               \Vdash
         \Subset                  \Supset                  \Vvdash
         \sqsubset                \sqsupset                \backepsilon
         \therefore               \because                 \varpropto
         \shortmid                \shortparallel           \between
         \smallsmile              \smallfrown              \pitchfork
         \vartriangleleft         \vartriangleright        \blacktriangleleft
         \trianglelefteq          \trianglerighteq         \blacktriangleright

Table: AMS Arrows

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
        \dashleftarrow           \dashrightarrow            \multimap
        \leftleftarrows          \rightrightarrows          \upuparrows
        \leftrightarrows         \rightleftarrows           \downdownarrows
        \Lleftarrow              \Rrightarrow               \upharpoonleft
        \twoheadleftarrow        \twoheadrightarrow         \upharpoonright
        \leftarrowtail           \rightarrowtail            \downharpoonleft
        \leftrightharpoons       \rightleftharpoons         \downharpoonright
        \Lsh                     \Rsh                       \rightsquigarrow
        \looparrowleft           \looparrowright            \leftrightsquigarrow
        \curvearrowleft          \curvearrowright
        \circlearrowleft         \circlearrowright

Table: AMS Negated Binary Relations and Arrows

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
         \nless                   \ngtr                     \varsubsetneqq
         \lneq                    \gneq                     \varsupsetneqq
         \nleq                    \ngeq                     \nsubseteqq
         \nleqslant               \ngeqslant                \nsupseteq
         \lneqq                   \gneqq                    \nmid
         \lvertneqq               \gvertneqq                \nparallel
         \nleqq                   \ngeqq                    \nshortmid
         \lnsim                   \gnsim                    \nshortparallel
         \lnapprox                \gnapprox                 \nsim
         \nprec                   \nsucc                    \ncong
         \npreceq                 \nsucceq                  \nvdash
         \precneqq                \succneqq                 \nvDash
         \precnsim                \succnsim                 \nVdash
         \precnapprox             \succnapprox              \nVDash
         \subsetneq               \supsetneq                \ntriangleleft
         \varsubsetneq            \varsupsetneq             \ntriangleright
         \nsubseteq               \nsupseteq                \ntrianglelefteq
         \subsetneqq              \supsetneqq               \ntrianglerighteq
         \nleftarrow              \nrightarrow              \nleftrightarrow
         \nLeftarrow              \nRightarrow              \nLeftrightarrow

Table: AMS Binary Operators

1
2
3
4
5
6
7
8
         \dotplu                    \centerdot                 \intercal
         \ltimes                    \rtimes                    \divideontimes
         \Cup or \doublecup         \Cap or \doublecap         \smallsetminus
         \veebar                    \barwedge                  \doublebarwedge
         \boxplus                   \boxminus                  \circleddash
         \boxtimes                  \boxdot                    \circledcirc
         \leftthreetimes            \rightthreetimes           \circledast
         \curlyvee                  \curlywedge

Table: AMS Miscellaneous

1
2
3
4
5
6
7
8
9
          \hbar                   \hslash                      \Bbbk
          \square                 \blacksquare                 \circledS
          \vartriangle            \blacktriangle               \complement
          \triangledown           \blacktriangledown           \Game
          \lozenge                \blacklozenge                \bigstar
          \angle                  \measuredangle               \sphericalangle
          \diagup                 \diagdown                    \backprime
          \nexists                \Finv                        \varnothing
          \eth                    \mho

Table: Math Alphabets

1
2
3
4
5
6
7
8
               \mathrm{}
               \mathit{}
               \mathnormal{}
               \mathcal{}
               \mathcal{}                 eucal
               \mathscr{}                 eucal
               \mathfrak{}                eufrak
               \mathbb{}                  amsfonts or amssymb

Reprinted with permission from LaTeX Math Symbols

All Rights Reserved
Built with Hugo
Theme Stack designed by Jimmy
